ALU Vision

ENERGY EFFICIENCY

Thermal Transmission Coefficient
Uw ≥ 1.3 (W/m2 K)
Please consult typology, dimensions and glazing

ACCOUSTIC INSULATION

Maximum glazing: 30 mm
Maximum accoustic insulation: Rw = 41 dB

CATEGORIES ACHIEVED AT TEST CENTRE

Protection against atmospheric agents
Air permeability (EN 12207): Class 4
Water tightness (EN 12208): Class 7A
Wind resistance (EN 12210): Class C5
Reference test: Balcony 1.23 x 1.55 m, 1 sash + 1 fixed

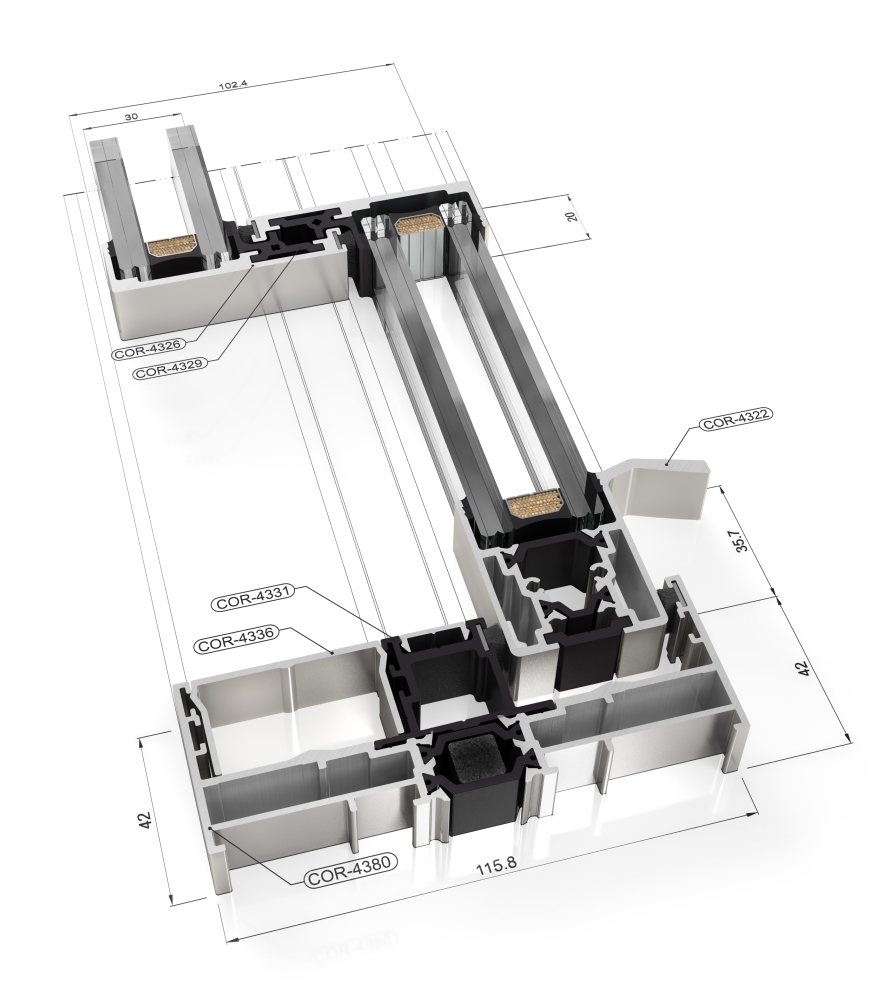

SECTIONS

Frame 116 mm
Tri-rails 182 mm
Sash 37 mm
PROFILE THICKNESS

Door 1.7 mm

MAXIMUM
DIMENSIONS

Width (L) = 2.500 mm
Height (H) = 3.000 mm

MAXIMUM
WEIGHT/SASH

320 Kg

OPENING POSSIBILITIES

Sliding
Possibility of 1, 2 or 3 rails
Possibility of interior and exterior
corner at 90º without mullion
Galandage

FINISHES

Colour powder coating
(RAL, mottled, rough…)
According to Qualicoat >60 micras
Wood effect powder coating
According to Qualideco standard
Anodized
According to Ewwa Euras
Standard Class 15
Optionally Class 20 and 25
Optionally bicoloured
